VERTICAL LABYRINTH LINEAR WALK 02 · R4364
Decayed
height:1.49m
height:1.49m
Age of
use:4 - 12
use:4 - 12
Number of
users:40
users:40
Security
area:60,13 m2
area:60,13 m2
CERTIFICATES
DOWNLOADS
TS R4364
CAD R4364

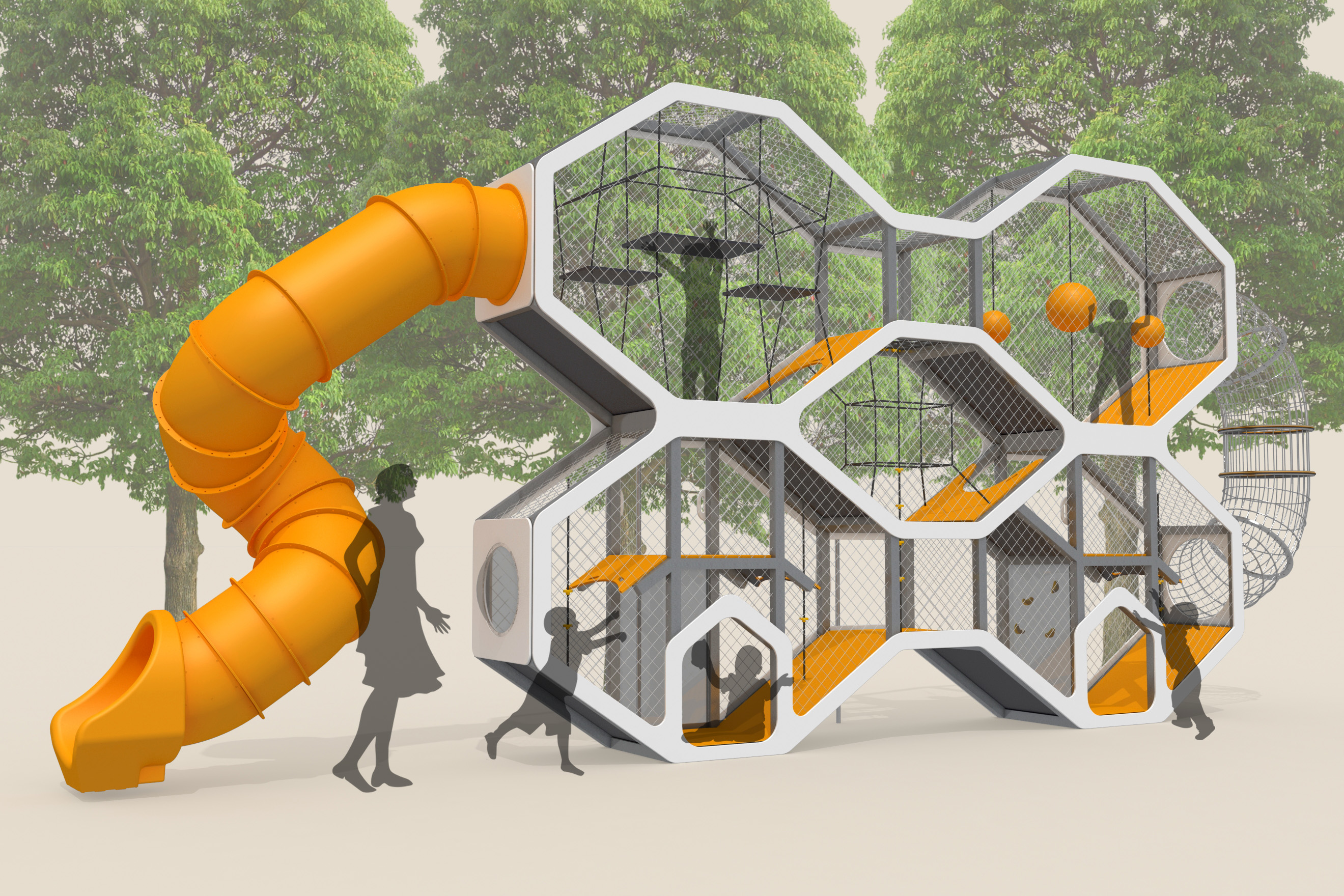

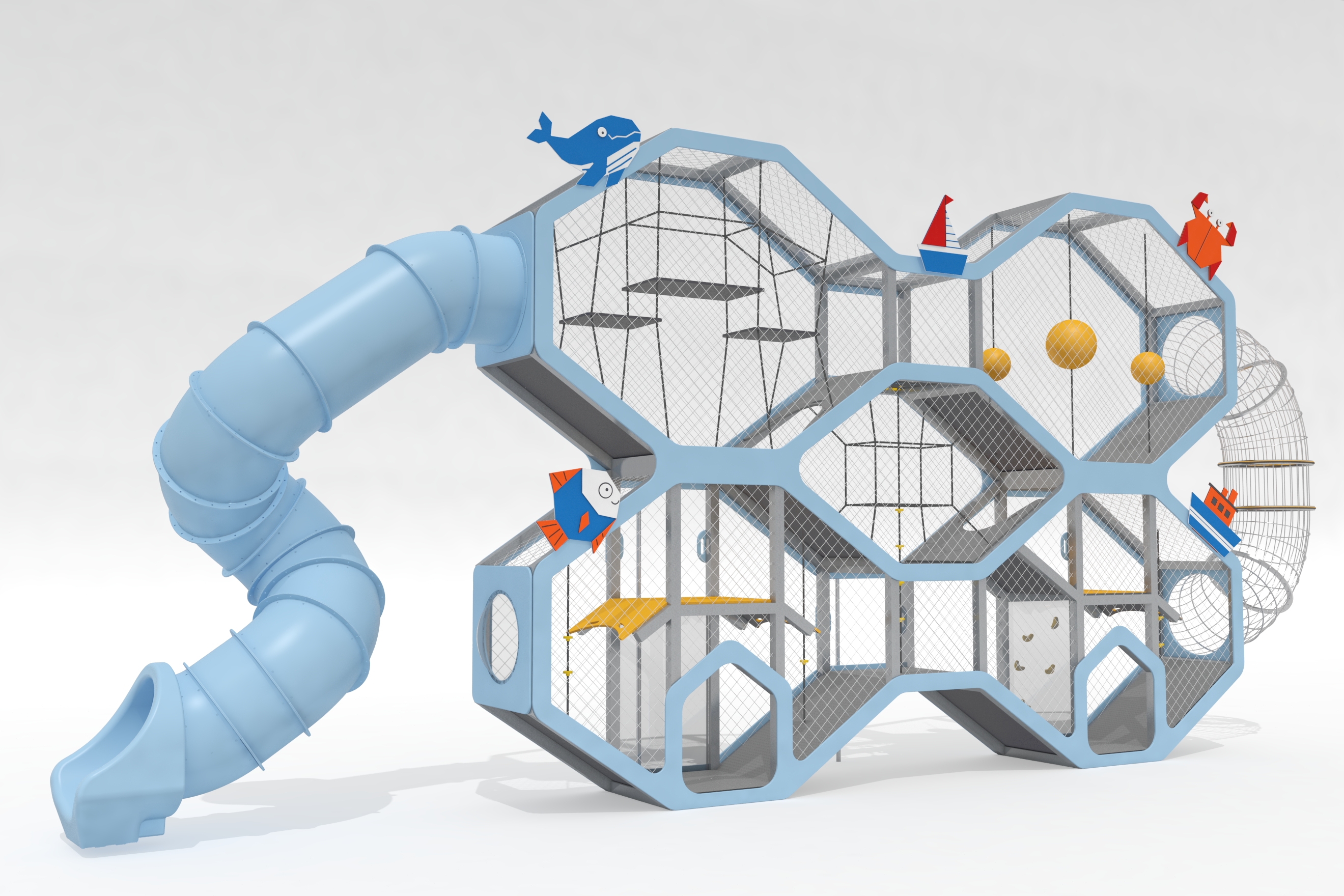

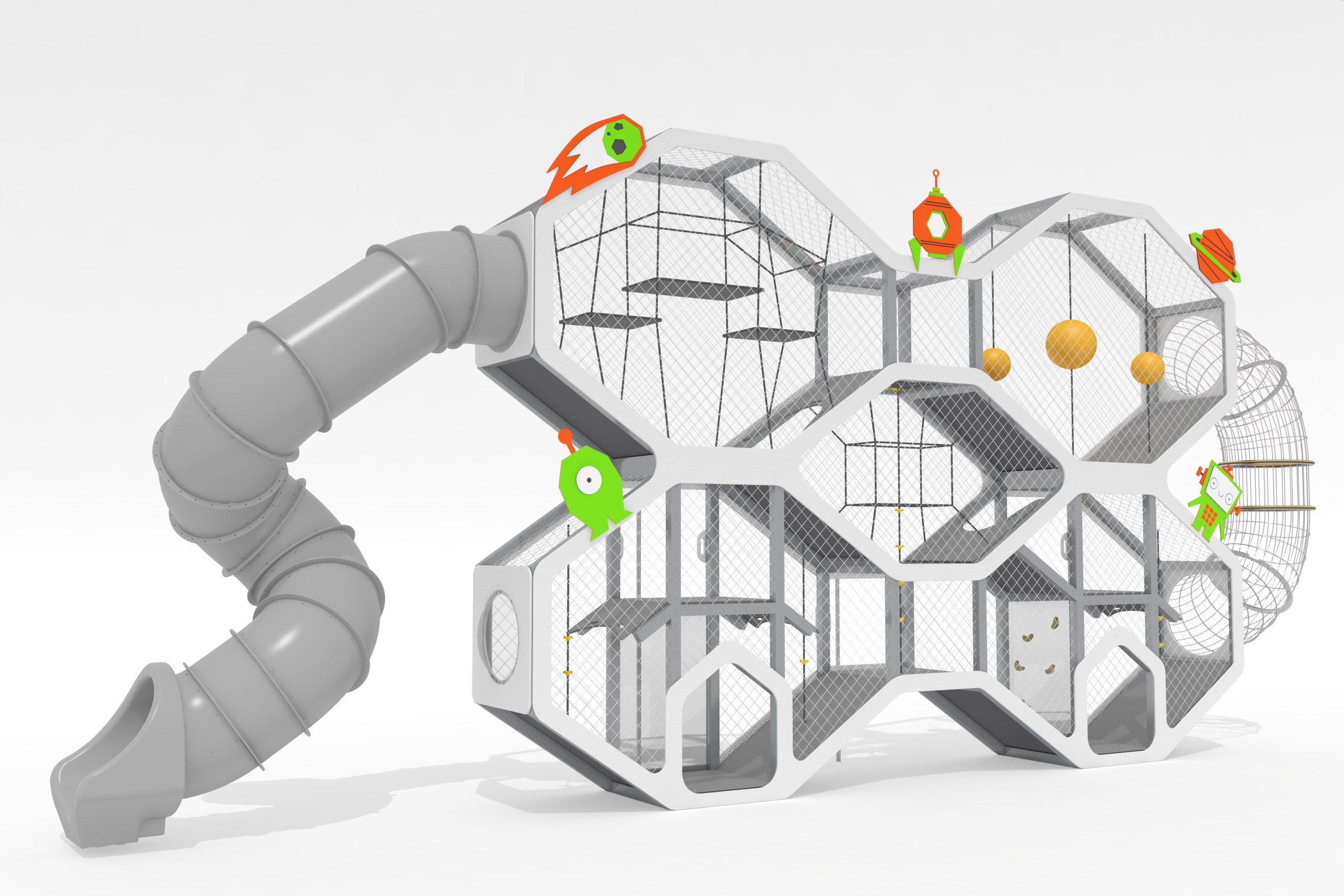

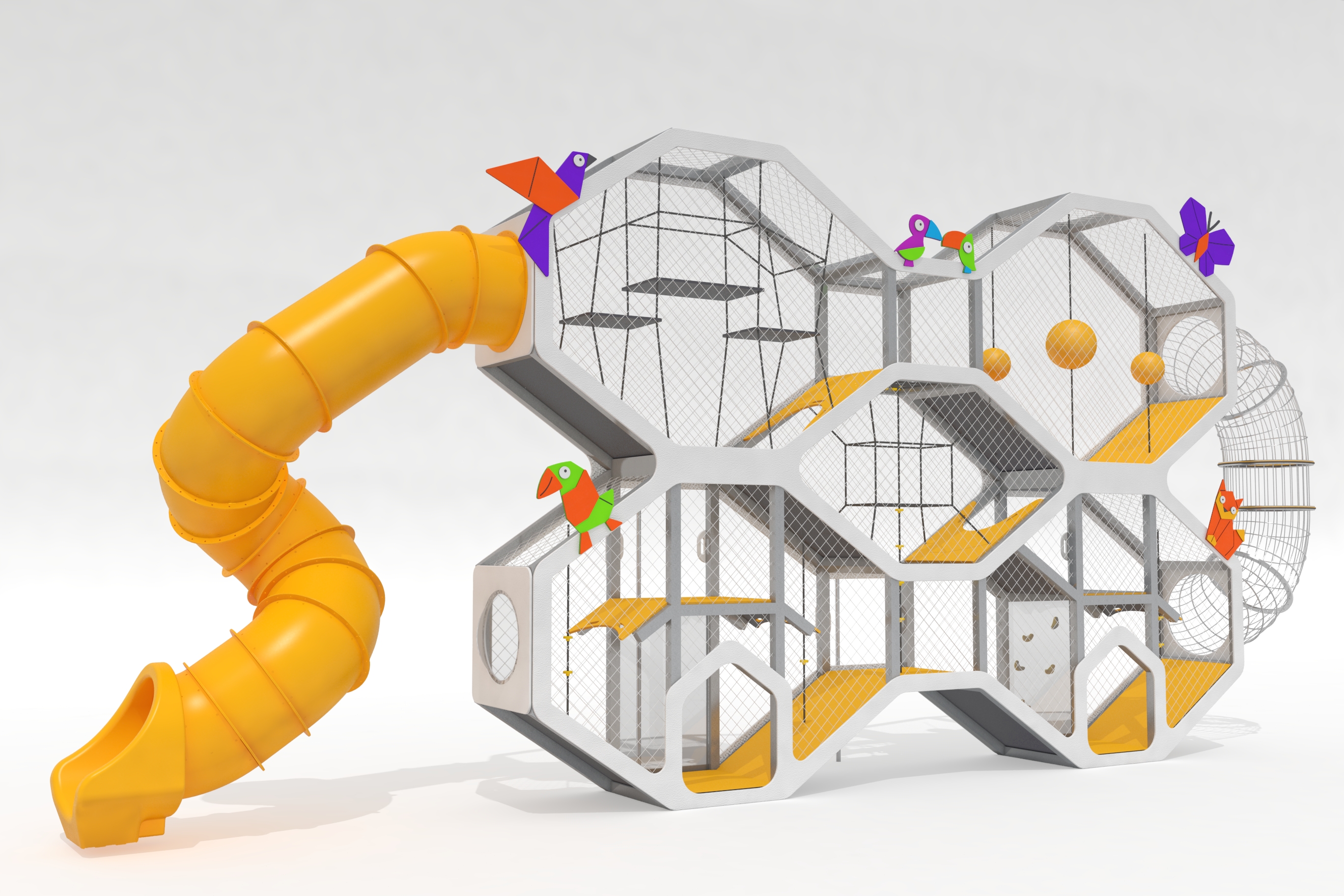

Singular playset VERTICAL LABYRINTH LINEAR WALK 02.

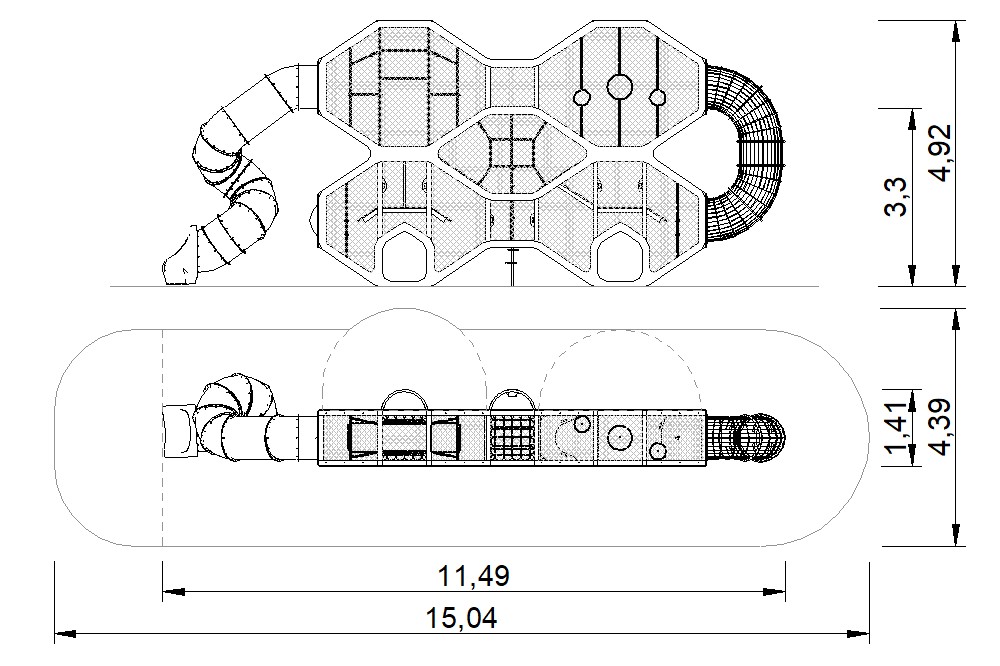

Dimensions, 11.49×1.70×4.92(high) m. Impact area, 60.13m². Consisting of:
8 staggered levels of play with different access elements connecting them:
• Vertical knots rope.
• Hanging platforms made of reinforced flexible rubber.
• Polyamide rope net meeting areas.
• Vertical climbing wall with professional climbing holds.
• Helicoidal fireman’s pole.
• Vertical ladder with rubberized vertical steps.
• Transparent polycarbonate weatherproof dome.
• Spiral tunnel slide made of rotomolded polyethylene.
• Stainless steel rods tunnel, making a 180º curved vertical access.
Materials
• 19 mm thick, maintenance-free, anti-graffiti, high-density polyethylene board decorations and side panels.
• Ø16 polyamide ropes with steel core.
• Floors, platforms and inclined ramps made of 20 mm thick rubberized polyethylene boards.
• Walls made with see-through galvanized wire security nets.
• Hot-dip galvanized steel structure.
• Stainless steel screws.
• Polyamide protective caps.
• Galvanized anchors.
• Ø16 polyamide ropes with steel core.
• Floors, platforms and inclined ramps made of 20 mm thick rubberized polyethylene boards.
• Walls made with see-through galvanized wire security nets.
• Hot-dip galvanized steel structure.
• Stainless steel screws.
• Polyamide protective caps.
• Galvanized anchors.
