Free fall height

User age

SECRET PASSAGE PLAYSET · R4256

juego singular monster tubo tunel cerrado 3d
juego singular monster tubo tunel cerrado 3d
juego singular monster parque infantil publico 3d
juego singular monster parque infantil exterior 3d
multijuego certificado en
juego infantil barra bomberos
juego infantil interactivo
multijuego tematico para parques publicos
multiples accesos divertidos
ninamultijuego hdpe antivandalico
parque infantil certificado y antivandalico
tobogan hdpe certificado

Decayed
height:
1.5m
Age of
use:
3 - 14
Number of
users:
21

FEATURES

CERTIFICATES

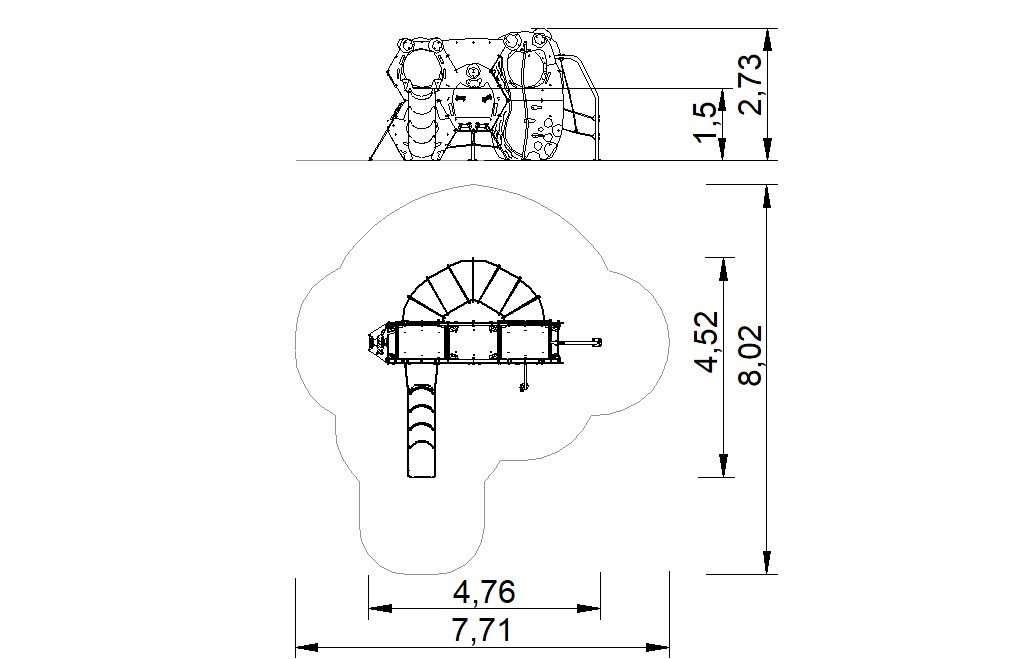

juego tematico monster parque infantil exterior 2dplano juego singular monster parque infantil exterior 2d

DOWNLOADS


TS R4256P

TS R4256X

INS R4256PA

INS R4256PE

INS R4256XA

INS R4256XE

CAD R4256P

CAD R4256X

Certificado de producto

The Secret Passage monster thematic playset for children playground areas is formed by platforms, slides, big format little monsters, a variety of accesses and interactive panels.

The thematic playset Secret Passage is manufactured with high quality materials like hdpe, high density polyethylene, produced with over 60% recycled plastic and thermo-painted galvanized steel, with an anti-vandalism design ideal for public playgrounds. It’s a safe playset compliant with all the EN1176-1 Standards.
Decorated with monsters, among which the elevated crawling tunnel stands out, together with its multiple games and accesses.

Materials
• Thermo-hardened polyester painted galvanized tubed hexagonal structures of 50x50 mm thickness.
• HDPE panels of 19 mm thickness made with more than 60% recycled plastic, maintenance-free and anti-graffiti
• HDPE or stainless steel slides.
• HPDE crawling tunnel
• Platforms and ramps made of 21 mm thick non-slip rubber coated polyethylene.
• Polycarbonate windows especially designed for outdoors.
• Polyamide ropes of Ø16 mm reinforced with 6-strand steel core.
• Polyamide protective caps.
• Stainless steel screws and bolts.
• Fixations: zinc-coated / hot-dip galvanized steel.
• Certified under EN1176.
